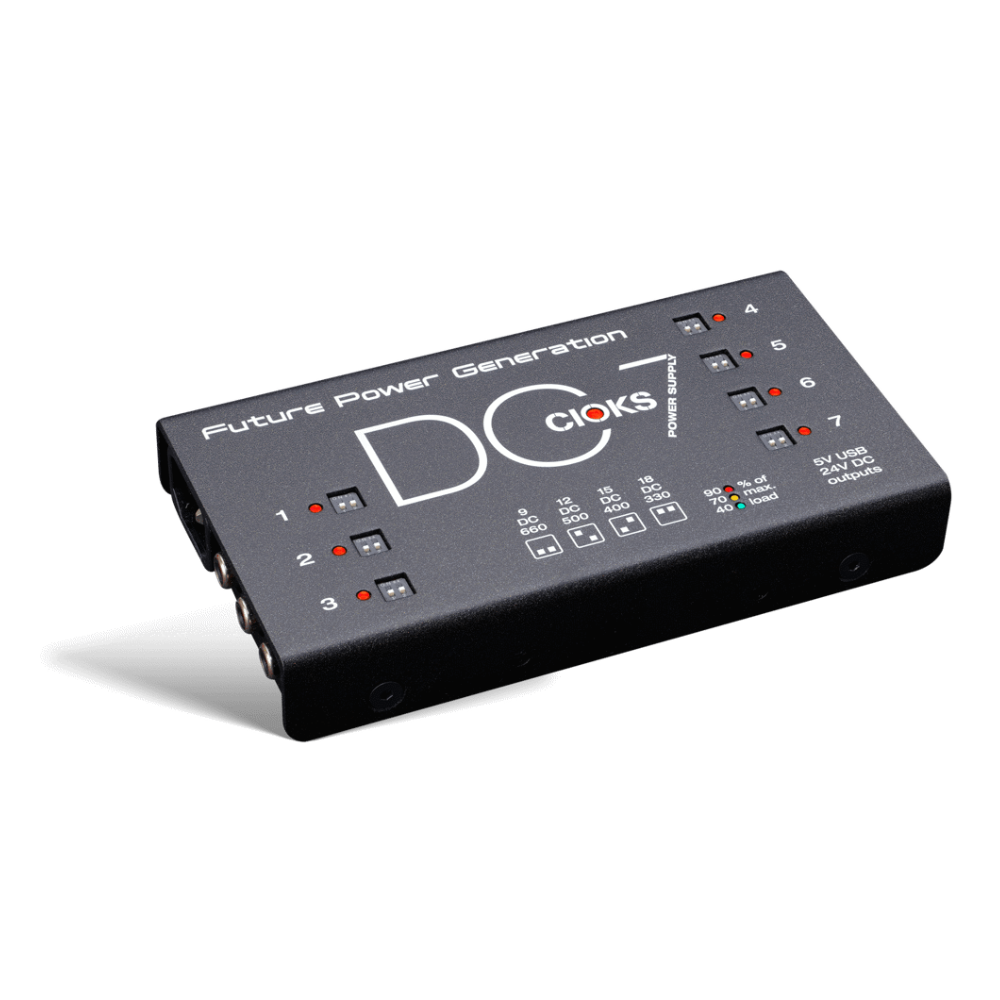

Cioks DC7

CIOKS DC7 Power Supply features:
• 7 isolated DC outlets.
• 660mA at 9V DC on each outlet.
• 4 selectable voltages on each outlet (9V, 12V, 15V or 18V DC).
• 5V USB outlet (1000mA).
• 24V DC auxiliary outlet (2000mA).


CIOKS DC7 specifications:
• Groundbreaking 1-inch profile (25.4mm).
• 2-stage switch-mode power supply topology.
• Ultra-low noise achieved by multistage filtering.
• Individual power limit LED on all outputs.
• Built-in true power meter showing the total load.
• Global overload status LED.
• Universal mains input voltage: 90 to 265V AC.
• Total maximum output power: 48W.
• Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards.
• Expandable with CIOKS 4, CIOKS 8 or other compatible units with 24V input voltage for additional isolated outputs.
• Weighs 1.1 lbs (500 grams).



CIOKS DC7 includes :

• CIOKS DC7 power supply
• Mains power cord
• Standard Flex type 1 – black with 5,5/2,1mm centre negative DC plug x7
• Standard Flex type 2 – red with 5,5/2,1mm centre positive DC plug x1
• Standard Flex type 4 – green with 5,5/2,5mm centre positive DC plug x1
• Standard Flex type 5 – black with tip positive 3,5mm Jack plug x1
• Split Flex type 1 – powers two pedals of a single outlet x1
• 3-way Daisy chain Flex type 1 – powers three pedals of a single outlet x1
• Mounting hardware: 2 screws and a hex-key
• Manual
• Product sheet (drill guide)
• CIOKS sticker sheet
• Flex guide

Fits under Pedaltrain Metro Series
Buying a Cioks Super Bundle SB-15 is cheaper than buying a DC7 + 4 or 8 separately.

If you’re ordering a few products from us, we'll be happy to put things together for you before we ship them out.

Whether it’s mounting a few parts, connecting cables, or helping you start your pedalboard build, we can take care of it so your gear arrives ready to play.

Contact us before placing your order and we’ll let you know if there are any small extra charges based on the complexity of the setup.

Cioks DC7 made by Cioks and sold by Beau Rig Audio - Pedalboard Accessory Store based in Montreal, Québec, Canada.
