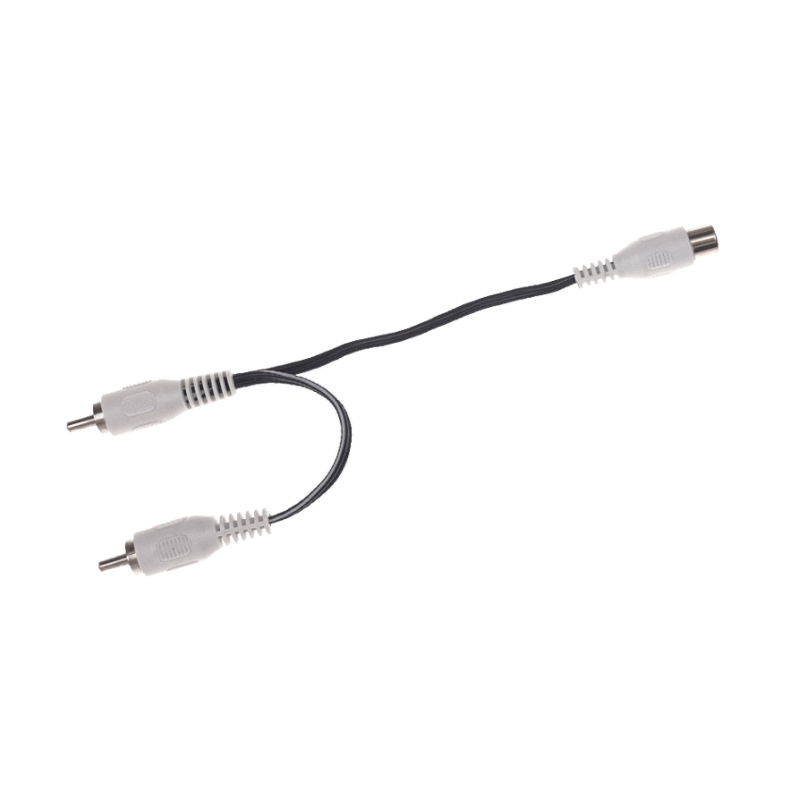

Cioks 2200 Voltage Doubler Series Adapter Flex Cable

By using two isolated outlets the Series adapter Flex gives you the sum of voltages of the two outlets used. This adapter Flex cable should be used in combination with any of CIOKS standard Flex cables if you want to power an 18V, 24V or even a 40V pedal. It gives you not only the higher voltage but also the possibility to choose the type of plug at the pedal end plus the length you need. The plug type and length is determined by the standard Flex cable used with the adapter Flex. If you’re looking for a simpler way to power an 18V pedal with a standard 5,5/2,1mm center negative DC plug (BOSS standard) please have a look at CIOKS Stack Flex.

Please note that the Series adapter Flex makes a series connection of the two outlets used. These two outlets must be isolated from each other. You get the sum of voltages (V) and not the current (mA). If you use it with two 9V outlets with a 100mA rating each you’ll get 18V and still a max. current of 100mA. If you use it with two 9V outlets with 200mA each you’ll get 18V and max. 200mA. If you use it with two outlets rated to max. 200mA set to 12V you’ll get 24V and still max. 200mA.

If you’re ordering a few products from us, we'll be happy to put things together for you before we ship them out.

Whether it’s mounting a few parts, connecting cables, or helping you start your pedalboard build, we can take care of it so your gear arrives ready to play.

Contact us before placing your order and we’ll let you know if there are any small extra charges based on the complexity of the setup.

Cioks 2200 Voltage Doubler Series Adapter Flex Cable made by Cioks and sold by Beau Rig Audio - Pedalboard Accessory Store based in Montreal, Québec, Canada.
